CME WIDI Master

Please Note 2 x CME WIDI Master are required for the bidirectional connection of MIDI devices.

---

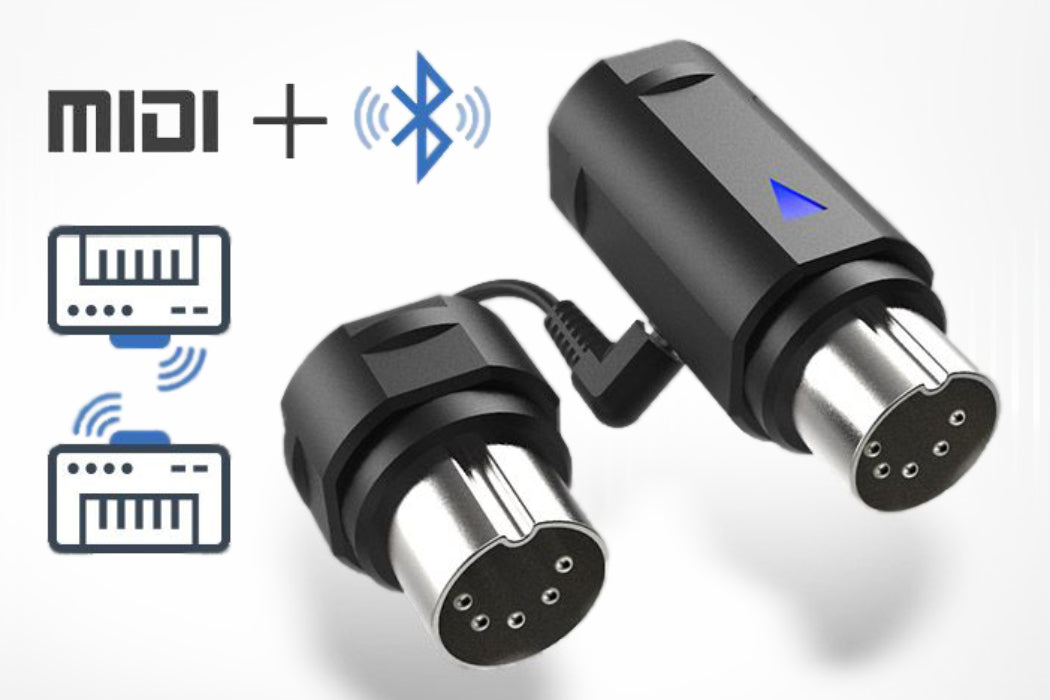

Get rid of those MIDI cables! WIDI Master is your virtual MIDI cable. Bluetooth MIDI is the new wireless standard as approved by the MIDI Association. Now you can connect all your MIDI devices - without cables - even without computers - with MIDI over Bluetooth!

Smart Connectivity Algorithms
WIDI distinguishes itself from any other Bluetooth MIDI technology available through its unique SCA technology. SCA is a collection of highly effective algorithms that optimise the performance of WIDI in any given situation. SCA stands for Dual Role Automation, Automatic Pairing Mode, Smart Hub Functionality, Latency Reduction Optimisation and Range Performance Optimisation!

---

Roger Linn about WIDI Master by CME

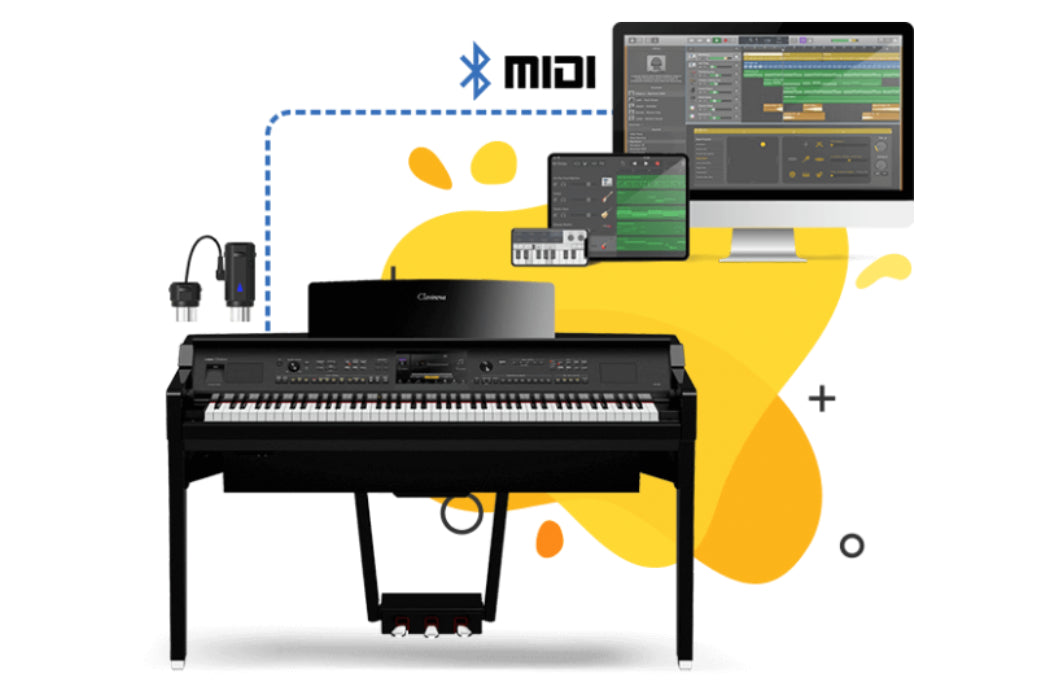

CME has been working on wireless MIDI solutions for over 15 years. Finally, you can replace your USB to MIDI cable with Bluetooth to MIDI solutions.

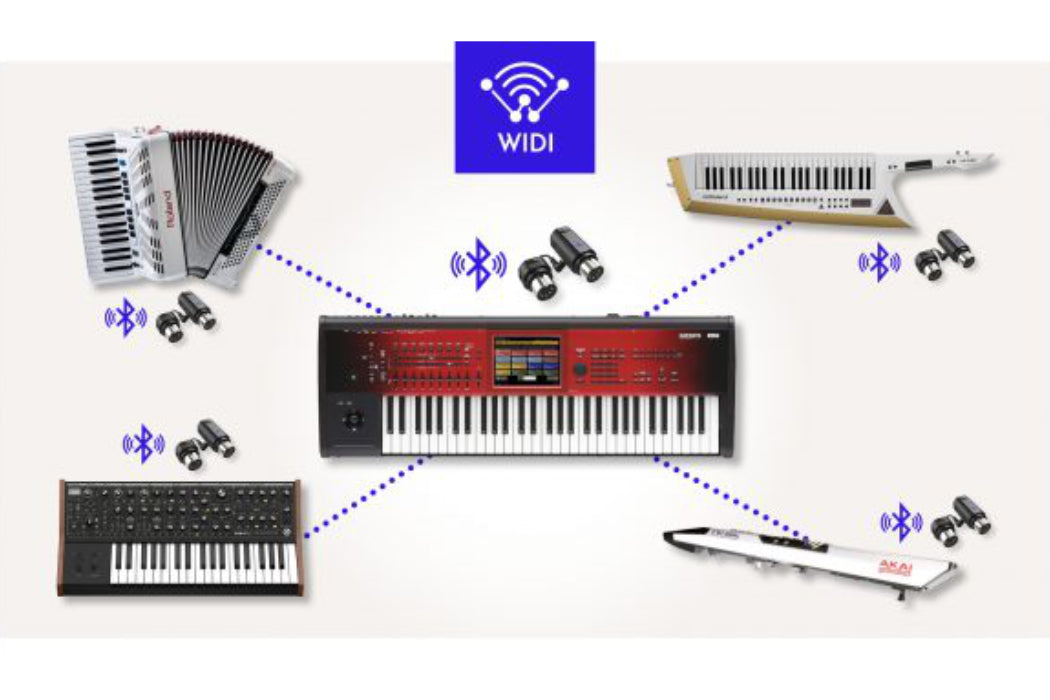

And you can do much more: instrument-to-instrument and wireless MIDI groups are already available.
And Bluetooth MIDI technology keeps evolving...

---

Technical Details

• Wireless Technology  Bluetooth 4/5, MIDI over Bluetooth Low Energy-Compliant
• Connectors  1x MIDI IN (5pin-DIN), 1x MIDI OUT (5pin-DIN)
• Switch, Indicator  1x switch, 1 x Multicolor LED
• Compatible MIDI  All MIDI devices with 3.3v or 5v powered 5-PIN MIDI OUT ports following the MMA standard
• Compatible BLE MIDI  WIDI Master, WIDI Jack, WIDI Uhost, WIDI BUD, standard Bluetooth MIDI controllers, iPhone/iPad/iPod Touch, Mac with Bluetooth 4.0 or later
• Compatible OS  iOS 8 or later, OSX Yosemite or later · Windows 10 v1909, Android 8 or later
• Firmware Update  By air using WIDI App (iOS/Android)
• Power Supply  5V/3.3V compatibility MIDI OUT DIN
• Power Consumption  37 mW
• Dimensions  Main: 21mm (W) x 21mm (H) x 49mm (D) · Sub: 18mm (W) x 18mm (H) x 24mm (D)

---

Highlights

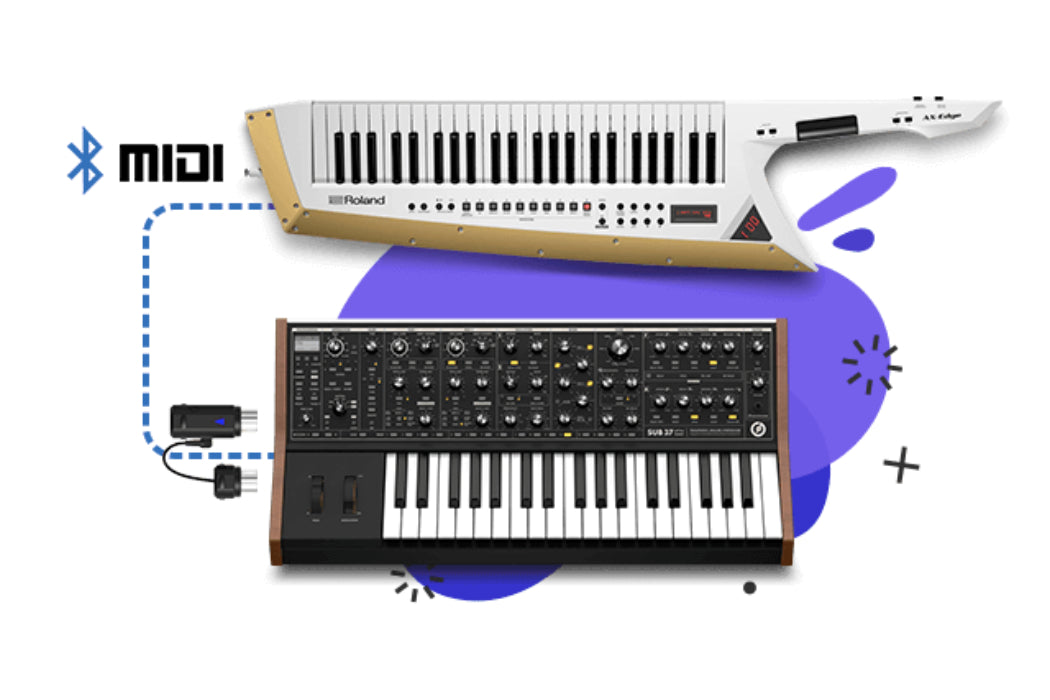

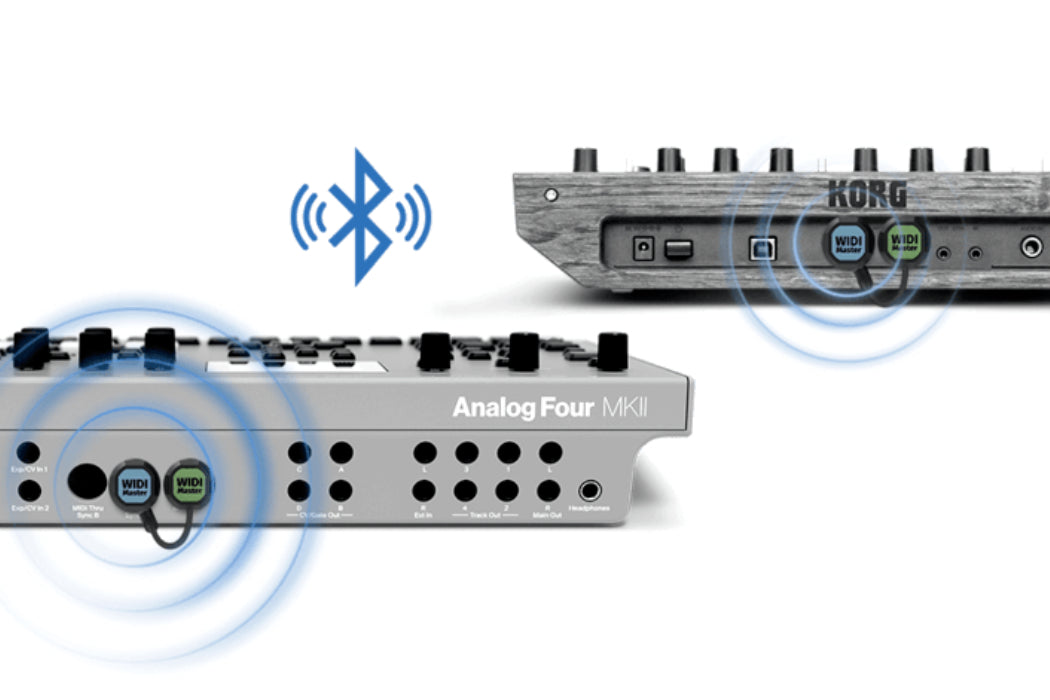

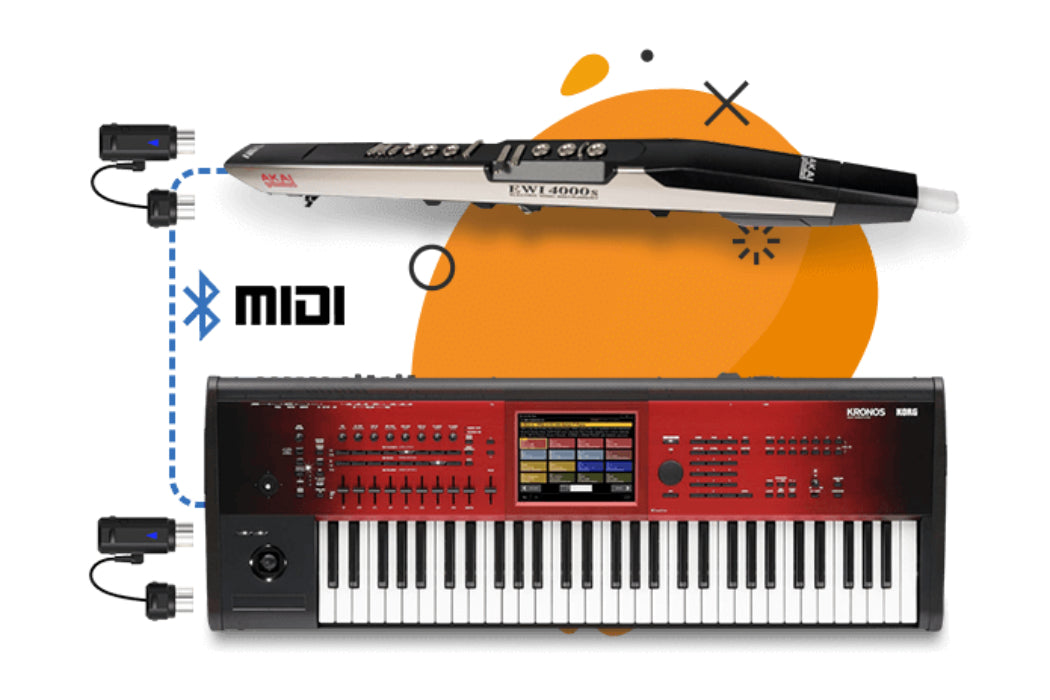

Point to point BLE MIDI connectivity
Simply replace your MIDI cables. Rearrange your studio and enjoy the freedom of WIDI.

Bluetooth 5: Go Faster, Go Further
Trusted technology for live and on stage. Secure connection with twice the speed and four times the range.

Ultra low latency
Go pro with ground-breaking latency reduction as low as 3ms. Smart algorithmic transmission optimization.

Automatic pairing
Setup instantly. Operate easily. Automatic master/slave switch and automatic paring.

MIDI Clock and SysEx
Sync your drum machines, step sequencers and arpeggiators. Transmit all MIDI messages over Bluetooth.

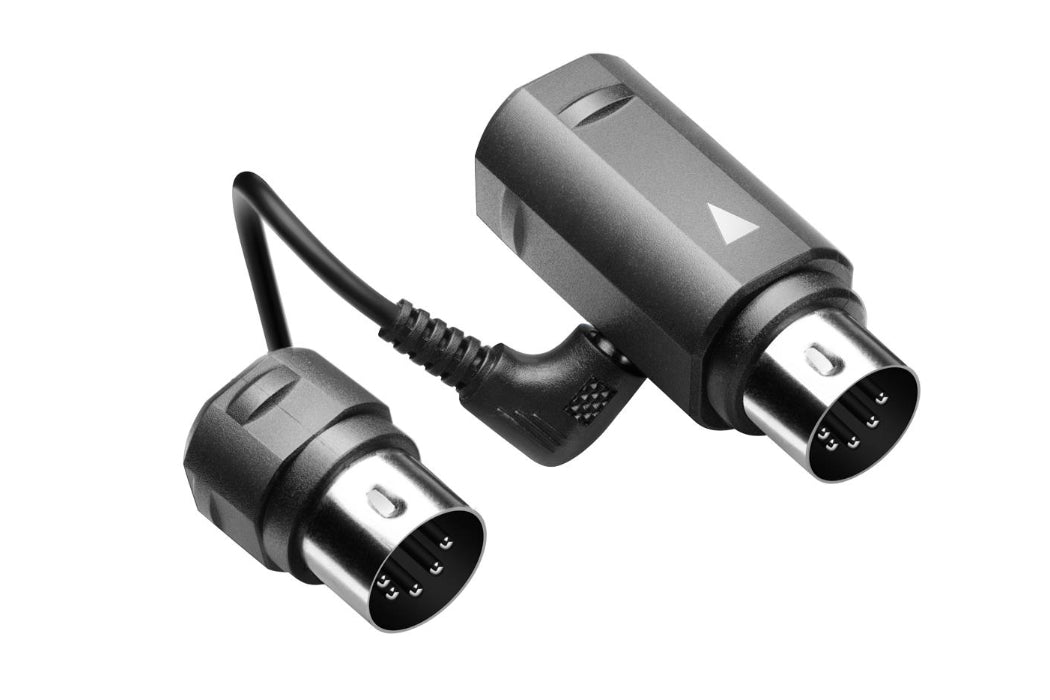

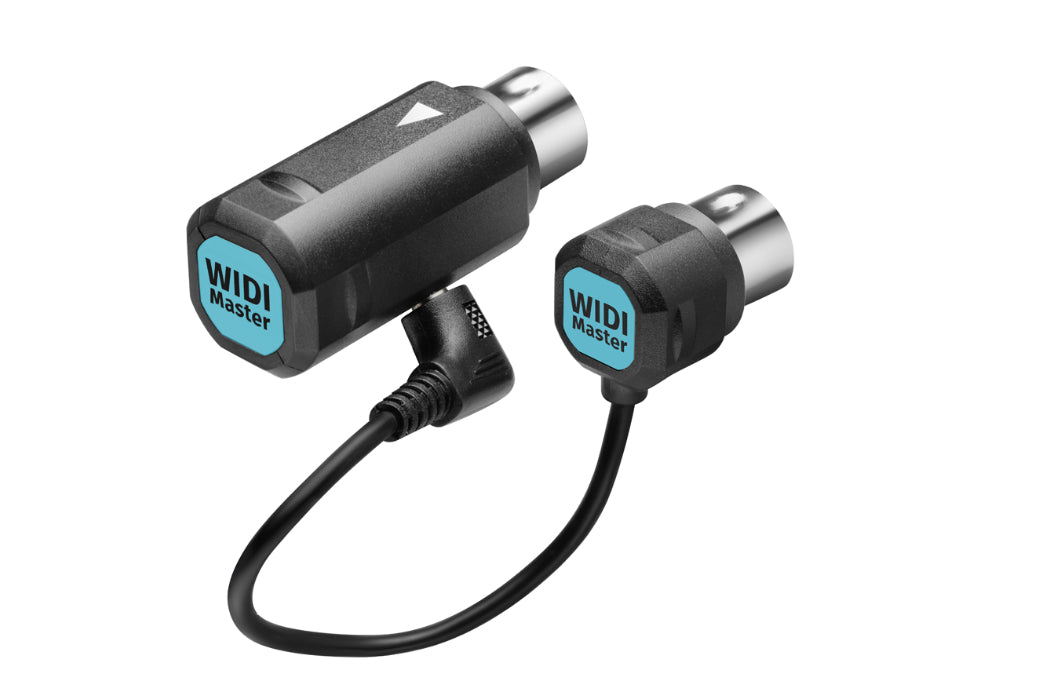

Detachable design
Only connect what you need. Separated adapter design for MIDI OUT only.

Versatile application
Connect with even the rarest instruments. 45 degree bridge cable design for vertical DIN connector setup.

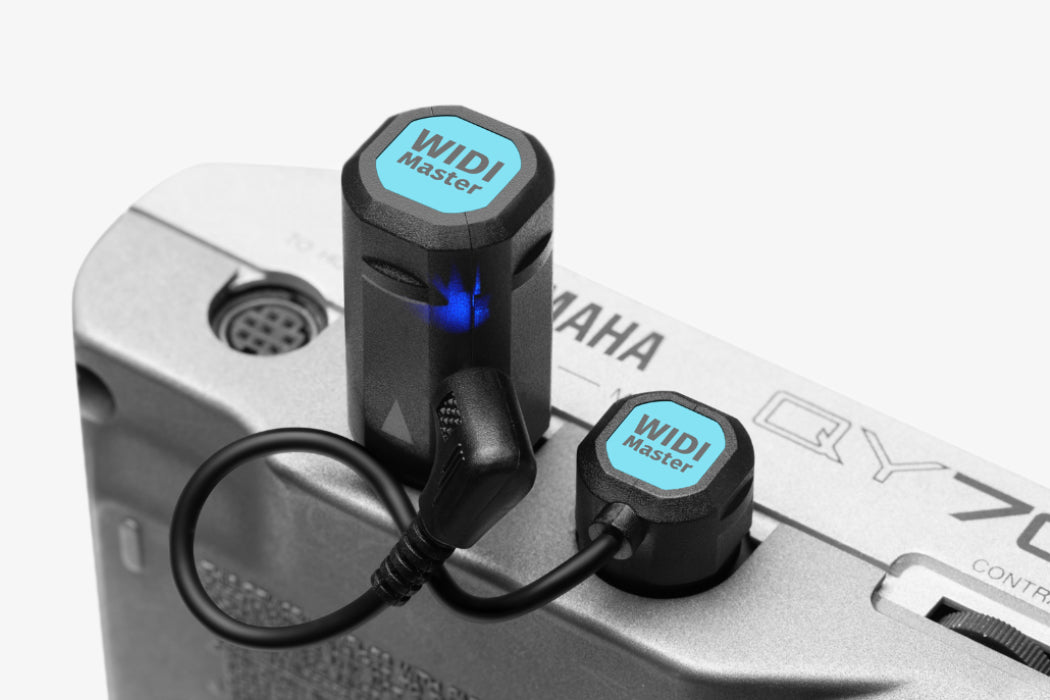

No external power
Enjoy the fully standalone wireless solution. Supports both 5V and 3.3V via MIDI OUT DIN.

Lifetime updates
Always benefit from the latest developments. New features updatable via using WIDI App (iOS/Android).

Wireless upgrade via Bluetooth
The easiest way to upgrade your firmware. Firmware upgradeable by air via WIDI application software for Androïd & iOS.

---
